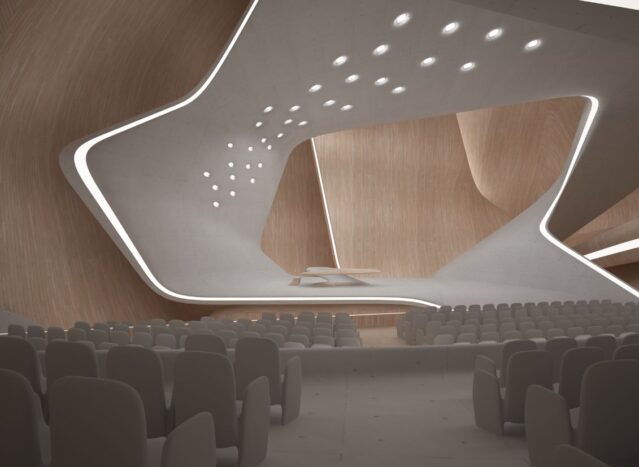

Room acoustic modelling

Using acoustic modelling software, we create a 3D representation of a room or space. This is typically used for large-volume or non-cuboid spaces which can’t be accurately assessed using standard calculation methods alone.

A detailed acoustic model allows different design approaches to be tested and refined before construction, providing greater insight into how a complex space is expected to perform.

The model can be used to predict reverberation time based on proposed room finishes, predict other design criteria such as speech transmission index, and assess the most efficient use of acoustic absorption and noise source placement to meet the required criteria.

Acoustic markups

BIM has increasingly become a requirement for large-scale projects across the country, particularly given its alignment with the golden thread requirements under the Building Safety Act.

For BIM to support effective coordination and information management , the acoustic information within it needs to be accurately and clearly embedded. Without it, requirements can get lost or overlooked as a project moves through design, construction and handover.

We help by providing acoustic markups as 2D or 3D plans, managing document naming protocols in line with BS1192 and ISO19650 guidance, and adding acoustic performance requirements as room or construction tags.

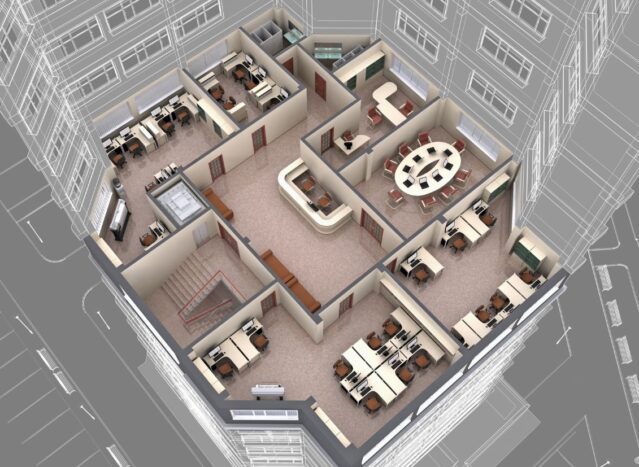

Digital site inspections

Traditional site inspections rely on walking the site, taking notes and photos, then writing them up into a report, a process that takes time and can delay any remedial work needed.

The longer it takes to identify and report an issue, the longer it stays unresolved on site, increasing the risk of it being built over or becoming harder to correct.

Our digital site inspections allow for a thorough review of a project as the design progresses, confirming acoustic requirements have been implemented, improving the accuracy of project costing, and helping resolve clashes.

Using PlanRadar, project plans can be reviewed and marked up directly to highlight defects, concerns and areas requiring attention, with supporting photographs added where needed. The platform also enables teams to collaborate on findings, helping issues to be clearly recorded, communicated and resolved.
